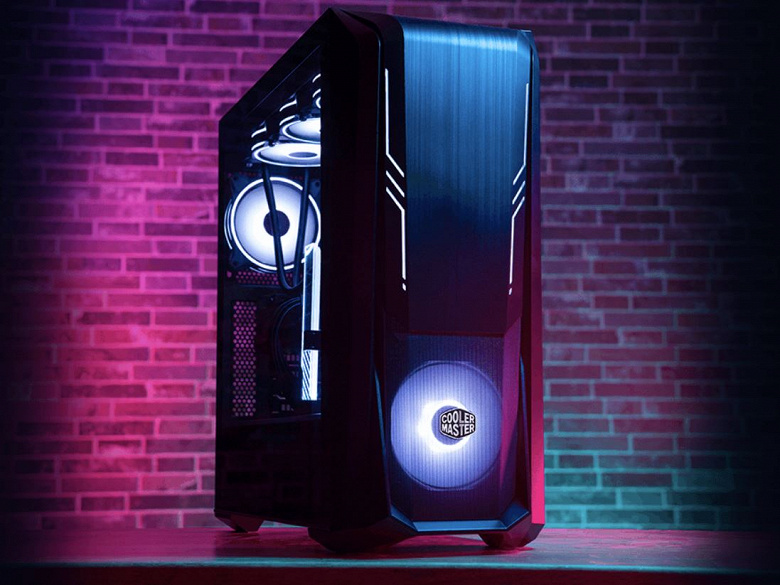

The MasterBox 500 model has replenished the catalog of Cooler Master cases. This is a capacious case with dimensions of 505 x 209 x 499 mm, designed to install a mini-ITX, microATX, ATX or E-ATX motherboard. The side panel of the case is made of tempered glass.

The Cooler Master MasterBox 500 case accommodates an E-ATX board
The Cooler Master MasterBox 500 case accommodates an E-ATX board
The Cooler Master MasterBox 500 case accommodates an E-ATX board
The Cooler Master MasterBox 500 case accommodates an E-ATX board

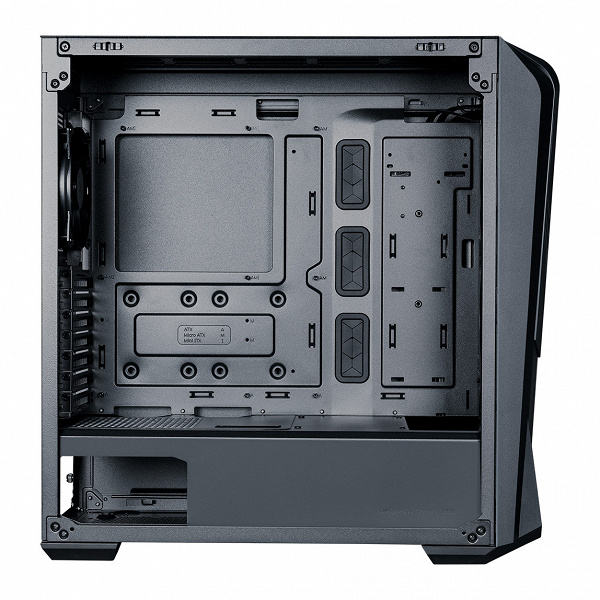

The case has seven slots for expansion cards up to 410 mm long. The height of the processor cooling system can be up to 165 mm, the length of the power supply – up to 180 mm. The manufacturer clarifies that the rejection of the basket for drives increases the allowable length of the power supply to 295 mm.

The basket can accommodate two 3.5- or 2.5-inch drives. The system board bay accommodates four 2.5-inch drives.

There is one 120mm RGB fan on the front wall, but there can be up to three 120mm or two 140mm fans in total. The upper plane has the same possibilities. A 120mm fan is located on the back wall. In the case of using LSS, a radiator up to 360 mm long can be fixed on top or in front, and a 120 mm radiator can be fixed at the back. The case features a removable top panel.

The I / O panel has two USB-A connectors for USB 3.2 Gen1 ports and a combo headset jack. There is also a backlight control button. The case is equipped with a hub with five ARGB ports and four PWM ports.

The manufacturer does not name the price of the novelty.
